1.零件平N於C板表面。
2.浮高判定量y以PCB零件面c零件基座之最低c榱y依。
1.Component is perpendicular and base is parallel to board surface
2.The floating height is measured from face of PCB substrate to the lowest point of component
$Page_Split$允收状况17 Accept Condition

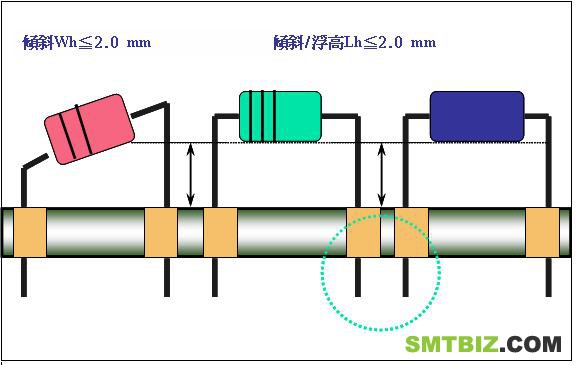

1.量y零件基座cPCB零件面之
最大距xQ2.0mm。
(LhQ2.0mm)
2.零件_未折_c短路。 3.P式COIL之LhQ2mm .
WhQ2mm)不受第1c之限制
1.The height of the component body above the land “Lh”is 2.0mm maximum
2.No leads be shorted or bended of component
3.Coil floating be specified to 2mm maximum
$Page_Split$拒收状况17 Reject Condition
1.量y零件基座cPCB零件面之最大距x＞2.0mm(MI)。
(Lh＞2.0mm)
2.零件_折_、未入孔、缺件等缺c影功能(MA)。
3.P式COIL之Lh或Wh>2mm判定拒收(MI) 。
4.Whichever is rejected
