价格:未填
品牌:URST & ZICK
发货:3天内

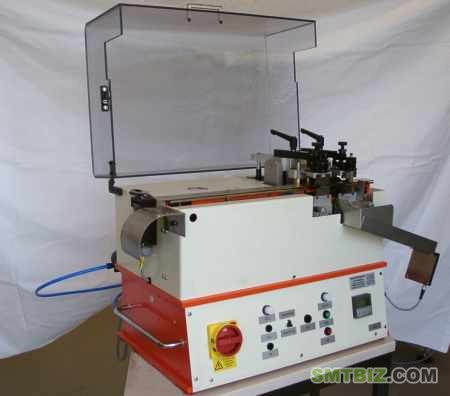

Universal Cutting- and Forming Automat
for taped radial components
|
|---|
 |
|
Components          |
| Specification | |
| - dimensions | 650 mm x 450 mm x 500 mm |
| - weight | approx. 35 kg |
| - electrical | 230 V / 50 Hz / 110 W |
| - control | Siemens SPS "LOGO" |
| - pneumatic | 6 bar |
| - pitch | min: 2,5 mm, max.: form dependend |
| - holepitch | 12,7 mm and 15 mm |
| - lead Ø | 0,4 to 1,0 mm |
| - components | taped |
| - delivery | reel or ammopack |
| - rate | with touching max. 4.200 pcs/hr without touching max. 6.300 pcs/hr |
|
Description: The Burst & Zick GmbH model C 092 has been developed to process taped components with holepitches of 12.7 mm and 15 mm with one machine. To eliminate any kind of inconsistencies due to variances in taping, this machine is fitted with a touch-tool that will verify the cut length. The machine was developed with two processing units for multiple die sets. The die inserts can be exchanged very quickly. Because of the dual processing-units a wide range of bending and stamping forms can be processed. Options:
|
|
