价格:未填
品牌:BURST & ZICK
发货:3天内

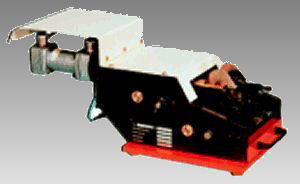

Cutting and Forming Device Type C 044
|
|
|---|---|
 |
components
|
| Specification | |
| - dimension | 200 x 450 x 200 mm |
| - weight | approx. 8 kg |
| - compressed air | 5 to 6 bar |
| - pitch | min. 2,54 mm, max. 5,08 mm |
| - component Ø | min. 2 mm, max. 8 mm |
| - component length | min. 4 mm, max. 10 mm |
| - lead Ø | C 044: 0,4 mm bis 0,8 mm C 044 S: 0,9 mm bis 1,4 mm |
| - components | loose or belted (manual supplied) |
| - operation | manual via pneumatic Foot pedal |
|
Description: The Burst & Zick machine Type C 044 is designed, to cut and form the leads of axial components for vertical mounting. A variety of form shapes are avalaible through the use of interchangeable die sets. To make the insertion of components with short leads into p. c. boards possible, the leads have to be cut to suitable length and formed to required raster. The set up adjustments are quite simple and secured to provide accurate forming of every compöonent lead. |
|
