Art-No.: 18000.R3-MT

The advantages of the SIEMENS Panel TP177B

• The setup values of the axis can be saved in a program.

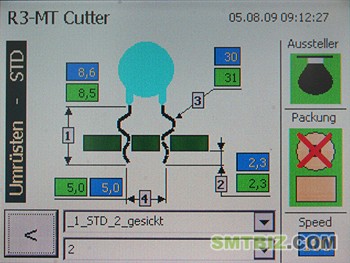

• There are 6 different geometric forms shown in 6 individual databases.

• These 5 databases can each hold 200 programs.

• The axis numbers on the screen correspond to the written numbers on the machine. This gives the operator a better overview.

• Process reliability: The production can just be started if the positions of all axes correspond to the position of the chosen program.

• Also during production the axes are permanently checked, is the position of one axe changing, the machine stops its process.

• New programs can be written very simply. There is one button needed to write all position data’s into the recent recipe.

• Option: A Barcode reader over USB can be used to call up in a simple way the program of your choice.

• Error and failure messages give detailed information about what is happening in the machine and what has to be done to avoid or to solve the problem.

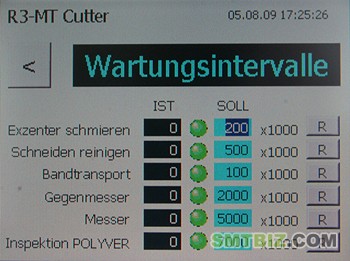

• The Maintenance-Assistance supports the operator to keep the maintenance of the machine in schedule. The maintenance is calculated by the amount of components produced. The operator receives the messages as soon as the counter overlapses. The counters can be reset and all changed to exactly fit the application.
