单边电子元件剪脚成型机，批量加工，基于TR-Cutter制造，配置精确的tape feeder。从2008开始配备S7-221西门子控制面板。传送带分成几个部分传送的末端会自运停止。计数器控制批量量生产。自动提醒维修保养。 2008年志成功应用
1.Same basic unit as the TR-Cutter but set up with a precise automatic tape feeder.
2.Since 2008 controlled with a Siemens control unit S7-221.
3.The empty belt is automatically cut into small pieces.
4.Automatic stop at the end of the belt.
5.Integrated counter to produce by the amount.
6.Total production counter integrated to control the maintenance.
7.Most successful machine of the year 2008.
|
Options TR and TRA
|
|
|
LCF (Loose Component Feeding)
|
|
 Art-No.: 106000 |

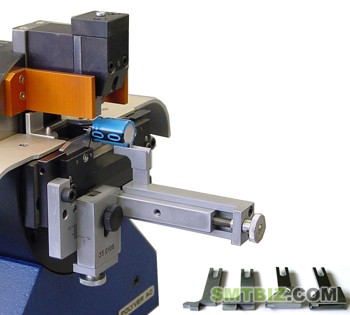

Multi functional LCF
2.Cylindrical components up to DIA 15mm. 3.For each type of components will be 2 different holders delivered. 4.One for regular components and one for 5.extreme fragile components with additional spring release. 6.All holders can be udjusted in all directions. |

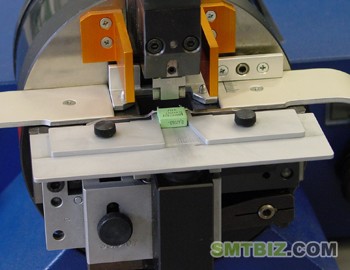

 Art-No.: 107000 |
LCF for flat component bodies 1Flat component bodies bigger than 8 mm body width.2.Process start by push down the LCF. 3.Component body size adjustable. |
| Tool specification TR/TRA-Cutter | ||||||||
|
Tool I - Distance holding crimp
|
||||||||
  |
C | Cutting length | min 6.0mm | |||||
| Lead diameter | 0.3 - 0.8mm | |||||||
| D | Length below PCB | 1.1 - 2.4mm | ||||||
| B | Pitch size | 2.5mm 5.0mm 7.5mm 10.0mm |
#111000 #110000 #112000 #113000 |
|||||
|
B |
Pitch size TO92 | 5.0mm | #110000 | |||||
| F | Outline measurement | 2.5 mm | ||||||
|
Tool II - Short cutting crimp
|
||||||||
| |
C | Cutting length | min 3.0mm | |||||
| Lead diameter | 0.3 - 0.8mm | |||||||
| D | Length below PCB | 1.6mm | ||||||
| B | Pitch size | 2.5mm 5.0mm 7.5mm 10.0mm 15.0mm 22.5mm 27.5mm |
#121000 #122000 #123000 #124000 #125000 #126000 #127000 |
|||||
|
Tool III - only cutting (short cutting)
|
||||||||
 |
C | Cutting length | min 3.0mm | |||||
| Lead diameter | 0.3 - 1.0mm | |||||||
| B | Pitch size | 2.5-27.5mm | #122000 | |||||
|
Specification of the Tape
|
|||||||
 |
Q | Component width | max 12.0mm | ||||
| X | Component height | max 50.0mm | |||||
| Y | Cutting length | min 5.0mm | |||||
| Z | Tape hole pitch | 12.7mm 15.0mm (Option) |
|||||
| Special shapes on request |
